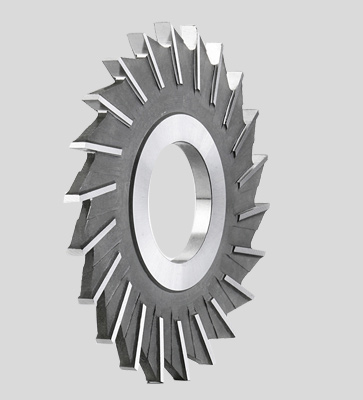

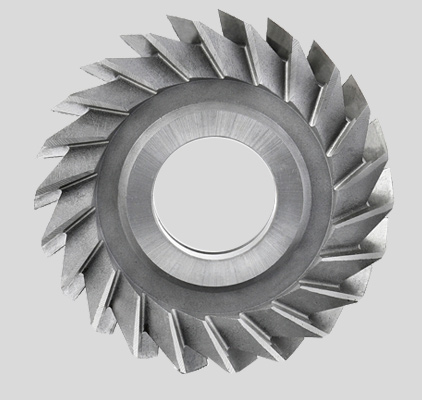

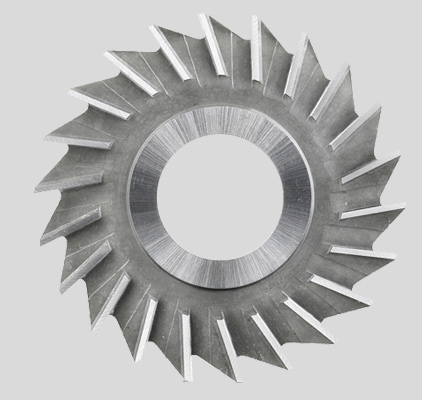

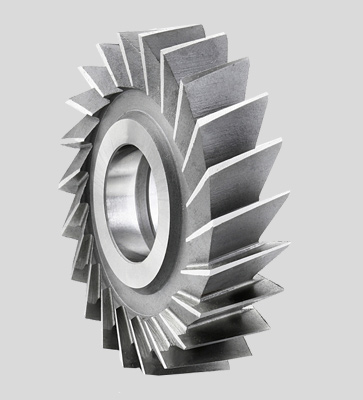

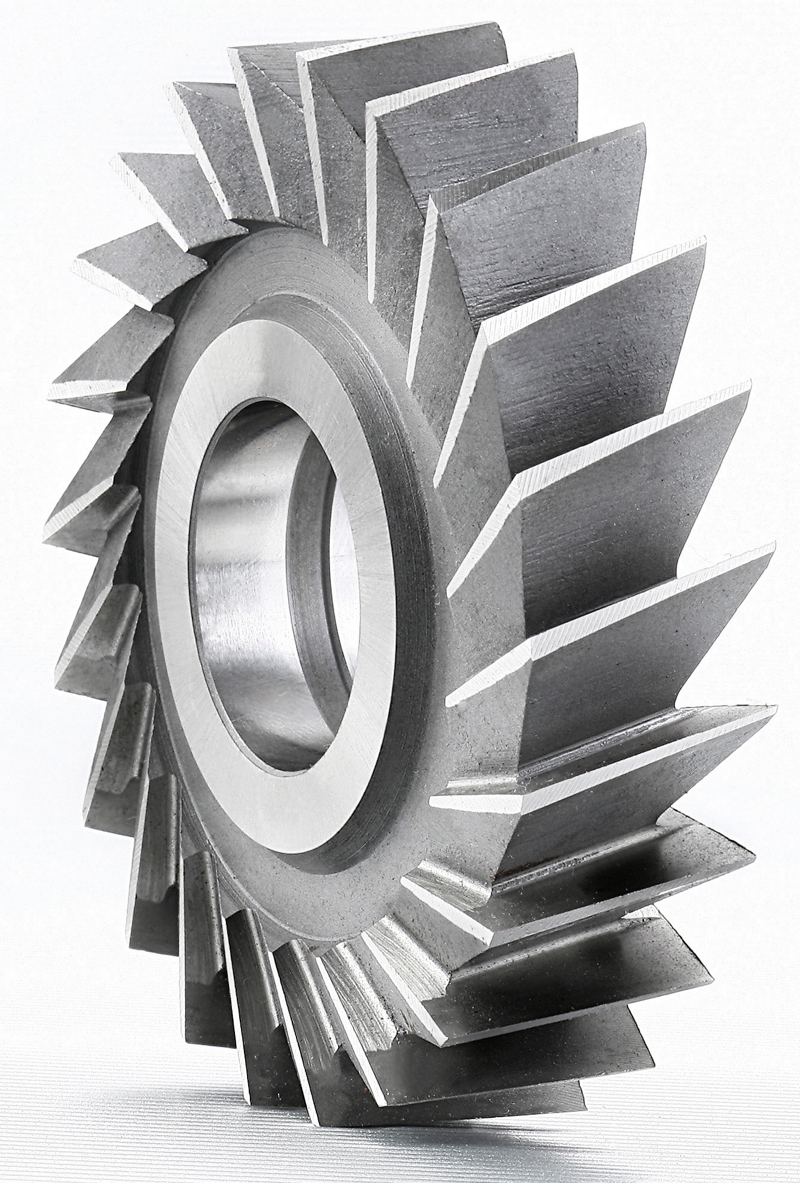

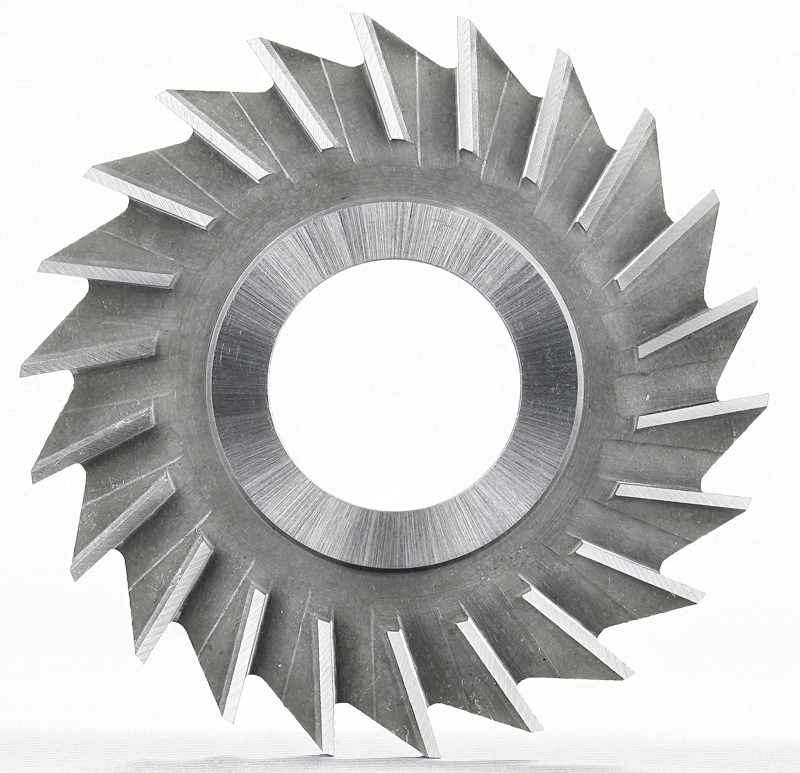

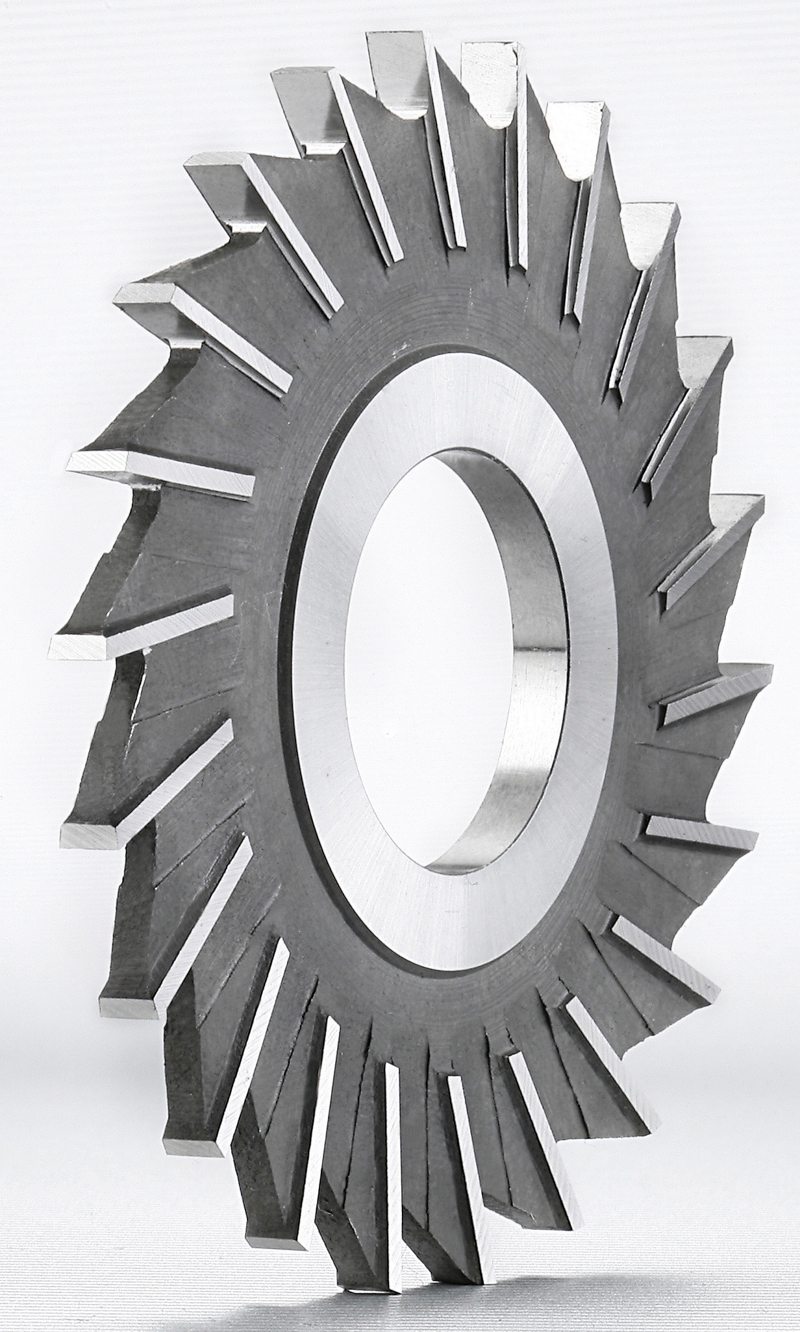

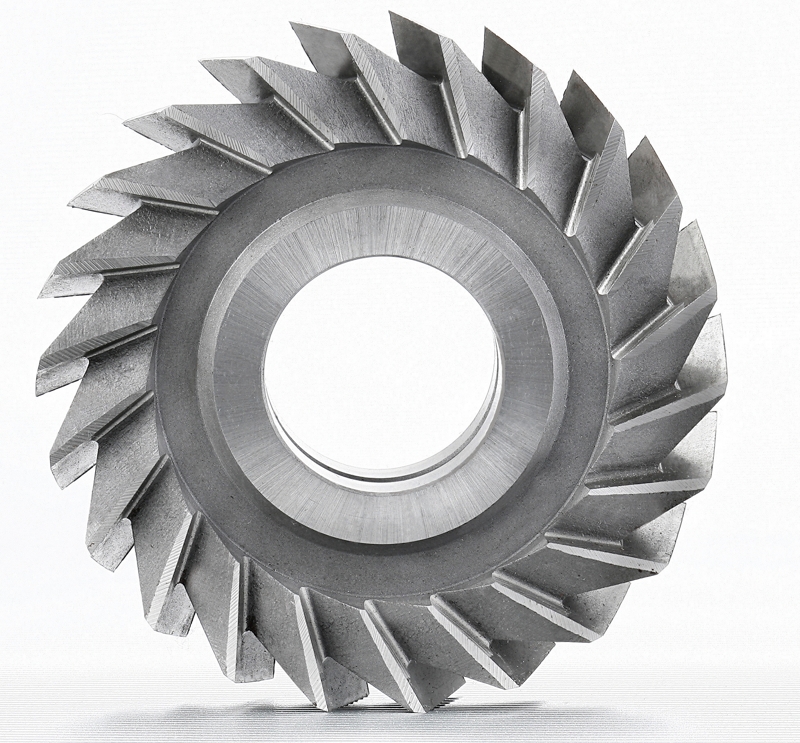

SIDE MILLING CUTTER AND BEVEL BLADE SIDE MILLING CUTTER

SIDE MILLING CUTTER AND BEVEL BLADE SIDE MILLING CUTTER

Specification
Recommended

※ SIDE MILLING CUTTER AND BEVEL BLADE SIDE MILLING CUTTER Specification ※

SIDE MILLING AND BEVEL BLADE SIDE MILLING CUTTER
Outside diameter	50	60	75	100	125	150	175	200
Outside diameter	2"	2 1/2"	3"	4"	5"	6"	7"	8"
Teeth number	18	20	22	26	28	32	34	36
Hole diameter				25.4"	1"
Thickness	3.0	4.0	5.0	6.0	7.0	8.0	9.0
	10	11	12	13	14	15	16	17
	18	19	20	21	22	24	25
	1/8"	3/16"	1/4"	5/16"	3/8"	1/2"	5/8"	3/4"
Special angle can be specified upon request.

※ SIDE MILLING CUTTER AND BEVEL BLADE SIDE MILLING CUTTER Recommended ※

Workpiece Mat'l	Casting Steel		Carbon Steel		Special Steel Tool Steel Stainless Steel Heat-resistant Steel		Forging Cast Iron Forging Cast Steel		Copper and Copper Alloy		Aluminum Alloy
Cutting Rate	25~35 m/min		25~35 m/min		15~25 m/min		25~35 m/min		40~80 m/min		100~200 m/min
D(mm) Outside Dia.(D)	rpm Speed RPM	mm/min Feed mm/min	rpm Speed RPM	mm/min Feed mm/min	rpm Speed RPM	mm/min Feed mm/min	rpm Speed RPM	mm/min Feed mm/min	rpm Speed RPM	mm/min Feed mm/min	rpm Speed RPM	mm/min Feed mm/min
75	120	100~200	120	100~200	80	70~130	120	100~200	250	230~300	630	500~1000
100	90	80~150	90	80~150	60	60~110	90	80~150	190	210~280	470	400~800
125	75	80~140	75	80~140	50	50~100	75	80~140	150	200~260	380	350~700
150	60	80~120	60	80~120	40	50~90	60	80~120	130	190~250	310	350~700
175	55	70~110	55	70~110	35	40~80	55	70~110	110	180~240	270	300~600
200	50	60~100	50	60~100	30	40~80	50	50~100	95	180~240	230	300~600

Specifications and design characteristics are subject to change without prior notice.
