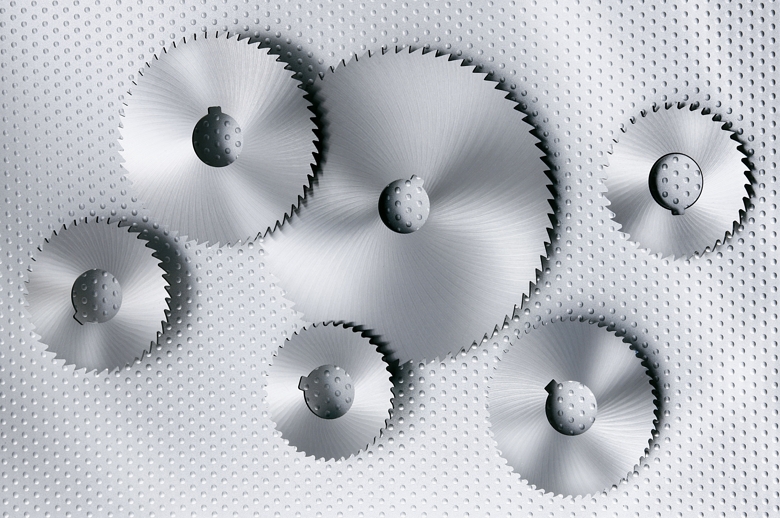

HSS Small Diameter Slotting Circular Sawblade
(KINKELDER)
. Extra Fine Grain Extra Hard Material。


  • Specification
  • Recommended
※ HSS Small Diameter Slotting Circular SawbladeSpecification ※
Outside Dia(D) 45 50 75 100 125 150
Hole Dia(d)
12.7 12.7 25.4 25.4 25.4 25.4
Thickness(T)
齒數(Z)/Theeth Number(Z)
0.40
54 54
0.50
54 54 64 72 86
0.60
54 54 64 72 86
0.70
54 54 64 72 86
0.80
54 54 64 72 86 100
0.90
54 54 64 72 86 100
1.00
54 54 64 72 86 100
1.10
54 54 64 72 86 100
1.20
54 54 64 72 86 100
1.30
54 54 64 72 86 100
1.40
54 54 64 72 86 100
1.50
54 54 64 72 86 100
1.60
54 54 64 72 86 100
1.70
54 54 64 72 86 100
1.80
54 54 64 72 86 100
1.90
54 54 64 72 86 100
2.00
54 54 64 72 86 100
2.10
54 54 64 72 86 100
2.20
54 54 64 72 86 100
2.30
54 54 64 72 86 100
2.40
54 54 64 72 86 100
2.50
54 54 54 54 56 72
2.60
54 54 54 54 56 72
2.70
54 54 54 54 56 72
3.00
54 54 54 54 56 72
3.50
54 54 54 54 56 72
4.00
54 54 54 54 56 72

Custom outside diameter,hole diameter,teeth number,
tooth shape,and blade thickness are available upon request.

NOTE: Hole diameter in metric or inch size may be specified
※ HSS Small Diameter Slotting Circular Sawblade Recommended ※
Workpiece Mat'l
Casting Carbon Steel
Special Steel
Tool Steel
Stainless Steel
Forging Cast Iron
Forging Cast Copper
Copper Alloy Aluminum Alloy
Citting Rate
27~35m/min 17~25m/min 20~25m/min 50~115m/min 120~240m/min
Outside Dia(D)
Speed RPM mm/min Speed RPM Feed mm/min Speed RPM Feed mm/min Speed RPM Feed mm/min Speed RPM Feed mm/min
45
212 270~400 141 180~260 141 180~260 425 540~720 851 100~1300
50
191 244~310 127 162~180 127 162~180 382 488~560 764 977~110
75
127 162~185 85 108~125 85 108~125 255 326~460 510 652~750
100
95 136~150 63 90~110 63 90~110 191 275~350 382 550~670
125
76 130~145 51 87~`05 51 87~105 153 263~310 306 526~650
150
63 126~135 42 84~96 42 84~96 127 254~290 254 508~580
Specifications and design characteristics are subject to change without prior notice.
