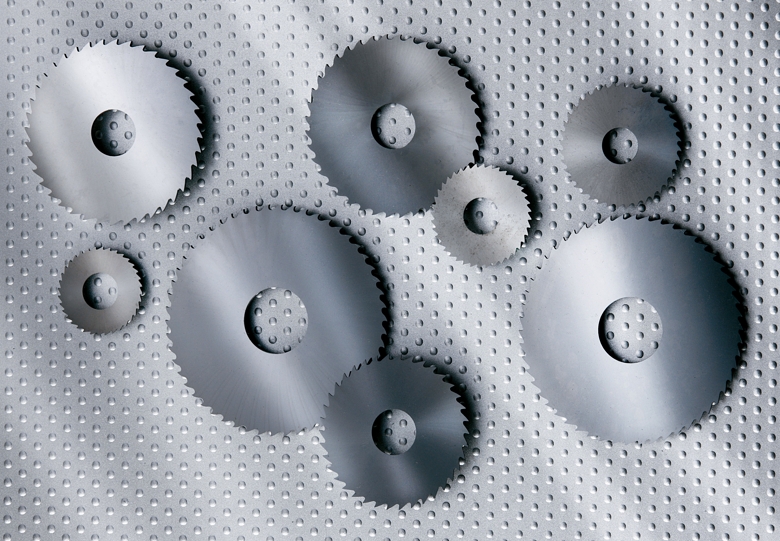

SOLID TUNGSTEN METAL CIRCULAR SAWBLADE
(Applicable for slot maching)
． Extra Fine Grain Extra Hard Material.


  • Specification
  • Recommended

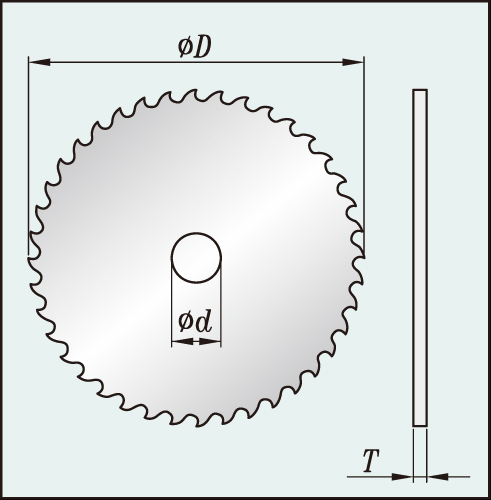

※ Solid Tungsten Metal Circular Sawblade Specification (Applicable for slot machining) ※
Outside Dia(D) 20 25 35 40 45 50 60 75 85 100 125
Hole Dia(d)
 6 6 8 8 12.7 12.7 12.7 25.4 25.4 25.4 25.4
Thickness(T)
 Theeth Number(Z)
0.30
 30 30 40 40 40
0.40
 30 30 40 40 40
0.50
 30 30 40 40 40 54 64
0.60
 30 30 40 40 40 54 64 64 64 72 86
0.70
 30 30 40 40 40 54 64 64 64 72 86
0.80
 30 30 40 40 40 54 64 64 64 72 86
0.90
 30 30 40 40 40 54 64 64 64 72 86
1.00
 30 30 40 40 40 54 64 64 64 72 86
1.20
 30 30 40 40 40 54 64 64 64 72 86
1.40
 30 30 40 40 40 54 64 64 64 72 86
1.60
 30 30 40 40 40 54 64 64 64 72 86
1.80
 30 30 40 40 40 54 64 64 64 72 86
2.00
 30 30 40 40 40 54 64 64 64 72 86
2.50

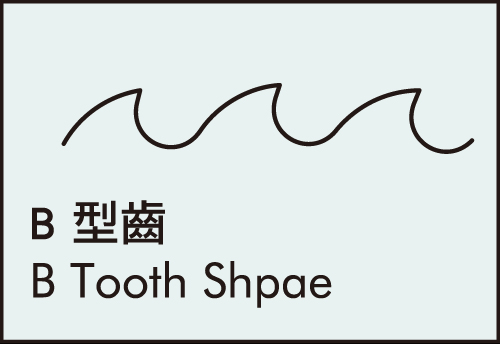

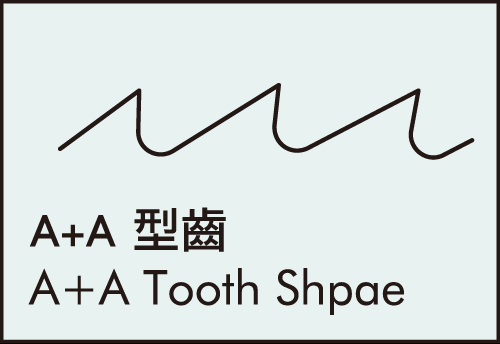

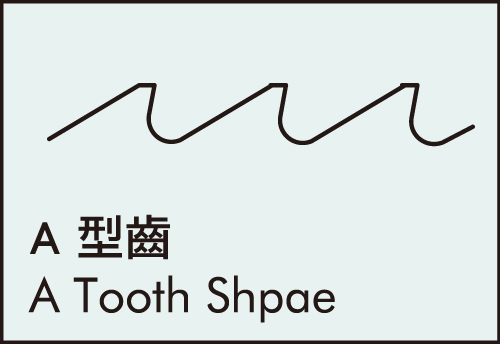

 Custom outside diameter,hole diameter,teeth number,
tooth shape,and blade thickness are available upon request.
3.00
3.50
4.00
NOTE: Hole diameter in metric or inch size may be specified
※ Solid Tungsten Metal Circular Sawblade Recommended ※
Workpiece Mat'l Cabon Steel Special Steel Aluminum Alloy Copper Alloy Cast lron
HRC30下/Under HRC30 HRC30~40 2024AC8A C2600B.BC FC15.25
Citting Rate
 60m/min 45m/min 150m/min 2000m/min 60m/min
Outside Dia(D)
 Speed RPM Feed mm/min Speed RPM Feed mm/min Speed RPM Feed mm/min Speed RPM Feed mm/min Speed RPM Feed mm/min
20
 900 450 710 350 2300 1150 3100 1550 900 450
25
 760 380 570 285 1910 955 2500 1250 760 380
35
 540 360 400 266 1360 906 1800 1200 540 360
40
 470 310 350 233 1190 793 1590 1060 470 310
50
 380 340 280 252 950 855 1250 1125 380 340
60
 310 330 230 245 795 840 1060 1130 310 330
75
 250 260 190 202 630 670 840 890 250 260
85
 220 230 160 170 560 597 740 780 220 230
100
 190 220 140 160 470 540 630 730 190 220
125
 150 210 110 150 380 540 500 710 150 210
Specifications and design characteristics are subject to change without prior notice.
