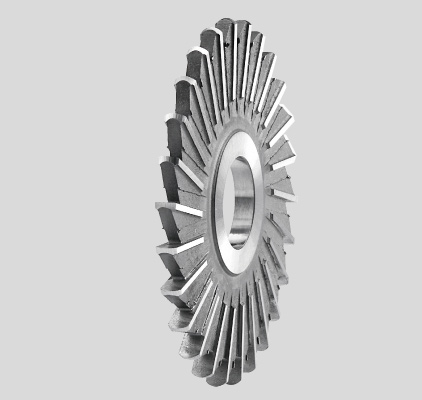

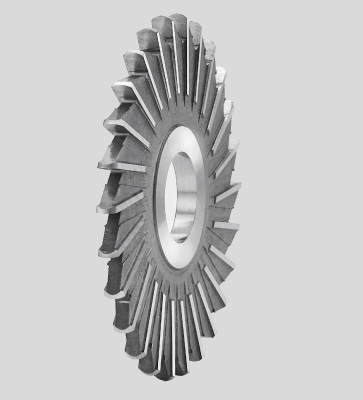

CONVEMILLING CUTTER

CONVEMILLING CUTTER

Specification
Recommended

※ CONVEMILLING CUTTER Specification ※

CONVE MILLING CUTTER
Outside diameter	75
Teeth number	12
Hole diameter	25.41"
Thickness	3	4	5	6	7
R angle	1.5R	2R	2.5R	3R	3.5R
Thickness	8	9	10	11	12
R angle	4R	4.5R	5R	5.5R	6R
Thickness	13	14	15	16	17
R angle	6.5R	7R	7.5R	8R	8.5R
Thickness	18	19	20	21	22
R angle	9R	9.5R	10R	10.5R	11R
The series is profiled cutters without stock for immediate delivery, when ordering,please provide drawing for manufacturing.

※ CONVEMILLING CUTTER Recommended ※

	Workpiece Mat'l	Casting Steel	Carbon Steel	Special Steel Tool Steel Stainless Steel Heat-resistant Steel	Forging Cast Iron Forging Cast Steel	Copper and Copper Alloy	Aluminum Alloy
Cutting Rate		20~25 m/min	20~25 m/min	20~25 m/min	20~25 m/min	20~25 m/min	20~25 m/min
D(mm) Outside Dia.(D)	75	0.20~0.29	0.11~0.17	0.09~0.12	0.15~0.18	0.07~0.18	0.06~0.15
D(mm) Outside Dia.(D)	90	0.17~0.24	0.09~0.13	0.08~0.10	0.13~0.14	0.05~0.15	0.05~0.12

Specifications and design characteristics are subject to change without prior notice.
